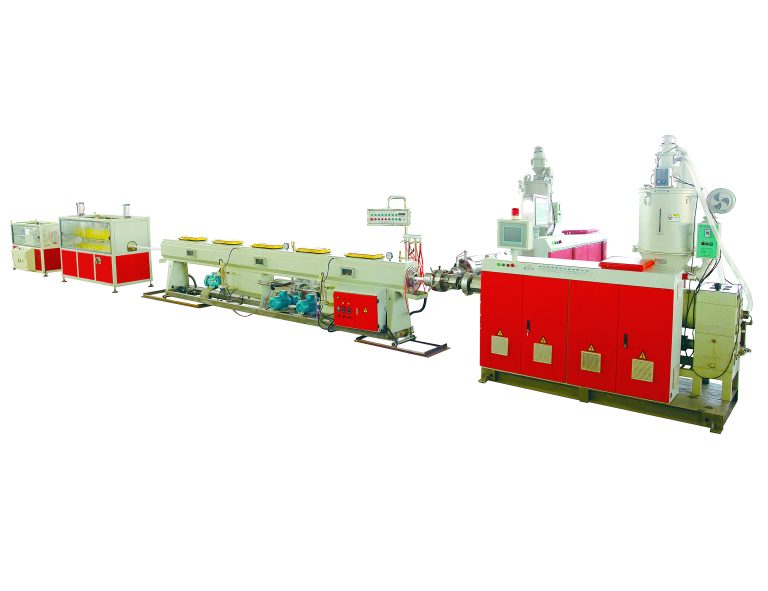

PVC steel wire reinforced hose production line
1.?Introduction of production line
High-speed and high-efficiency extruder is used to ensure material plasticization quality and output.
The specially designed wire spring winding machine has uniform winding spring and long continuous production time.
The pipe produced by the specially designed pipe head has high transparency, uniform distribution of steel wires, and the length can be set arbitrarily.
The main electrical components of the unit are imported products, and the operation is stable and reliable.?All control buttons of the unit are designed in one piece, which is easy and quick to operate.
2. Main technical parameters
| model | XQS45 | XQS65 | XQS90 | SQS120 |
| extruder | SJ45/30 | SJ65/30 | SJ90/30 | SJ120/30 |
| Specification range | ф12-25 | Ф20-50 | Ф50-102 | Ф75-150 |
| Yield | 20-40 | 40-75 | 70-130 | 100-150 |
| Installed power | 30 | 40 | 50 | 75 |
