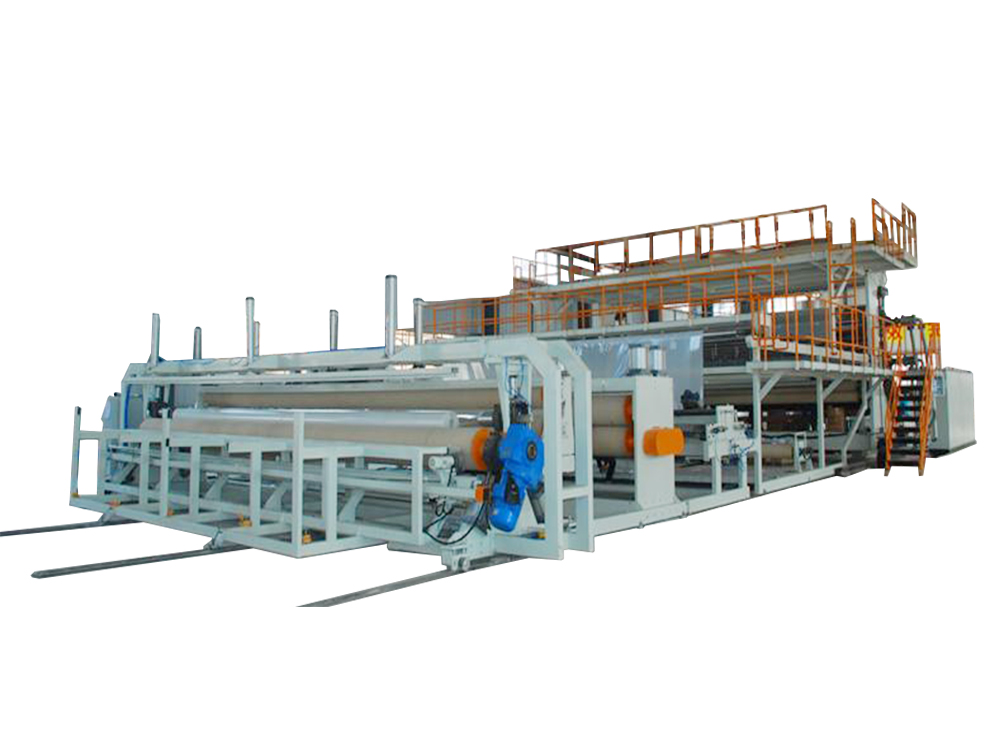

EVA, TPU PP, PE Wide Geotetile (Geomembrane) Production Line
The line is applied to produce monolayer or multilayer compound film for all kinds of geotextile, non-woven fabric, weaving fabric. Also it can produce geotextile products.
| Suitable fabrics | Unit | Geotexile plastic woven fabrics, non-woven fabrics | |||
| With of mould | mm | 3300 | 4500 | 6300 | 8300 |
| Laminate layers | ? | one fabric one film; two fabrics one film; waterproof sheet | |||
| Thickness of laminating film | Mm | 0.2-2.5 | |||
| Waterproof sheet thickness | Mm | 0.5-2.5 | |||
| Motor of extruder | Kw | 75-250 | |||
| Embossing roller size | Mm | 400 | 500 | 600 | 800 |
| Max. compound width | mm | 3000 | 4000 | 6000 | 8000 |
| Cooling method | ? | ??Circulating water cooling |
